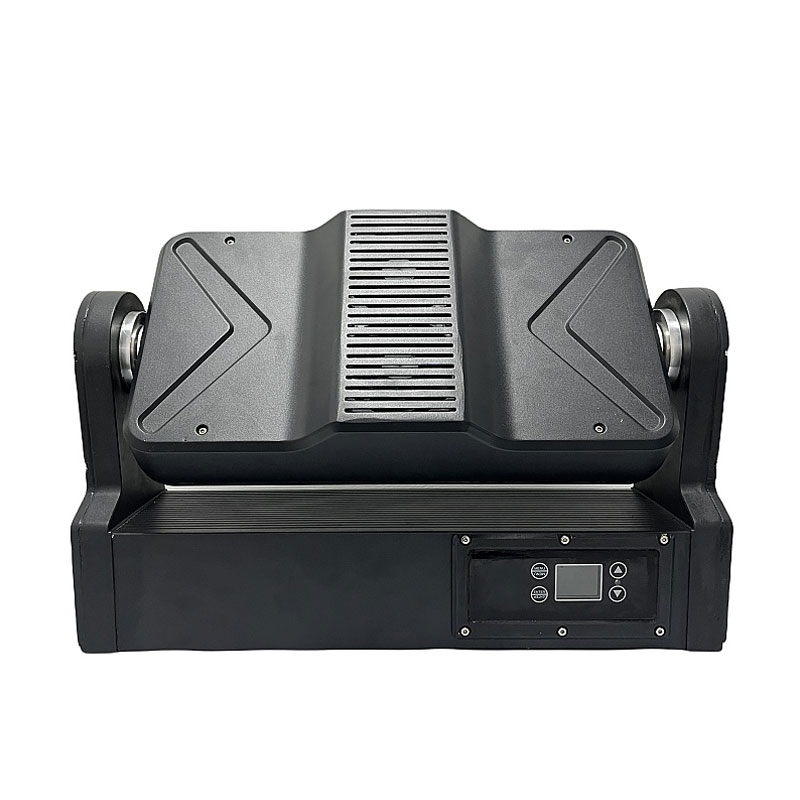

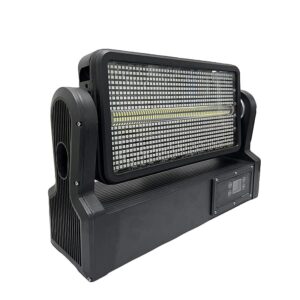

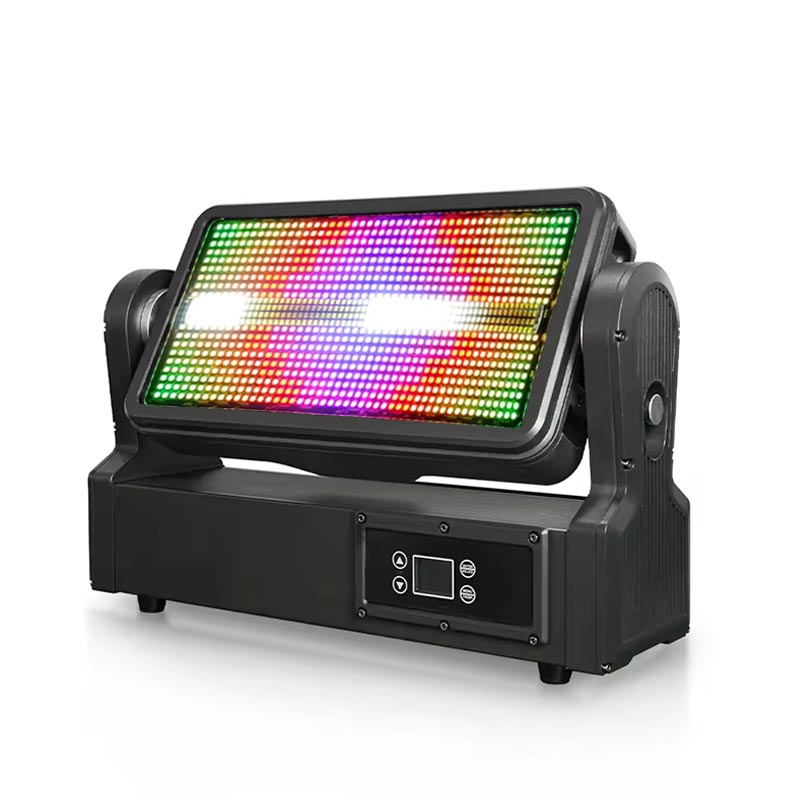

Moving Strobe MS1000IP

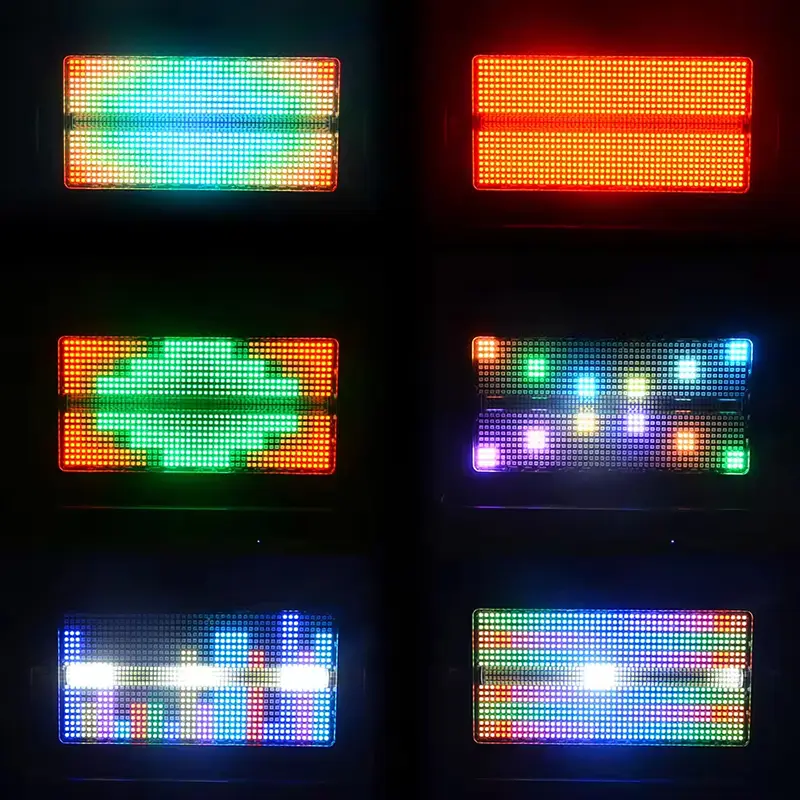

Moving Strobe MS1000IP is a 1000W IP65-rated waterproof moving strobe light, designed for both outdoor and stage applications. It features 128 individually controllable segments, including a panel with 864 × 0.5W RGB LEDs (96 segments) and a central tube with 256 × 3W white LEDs (32 segments). The fixture also comes with built-in macro programs, giving lighting designers greater flexibility and creative options during live shows.

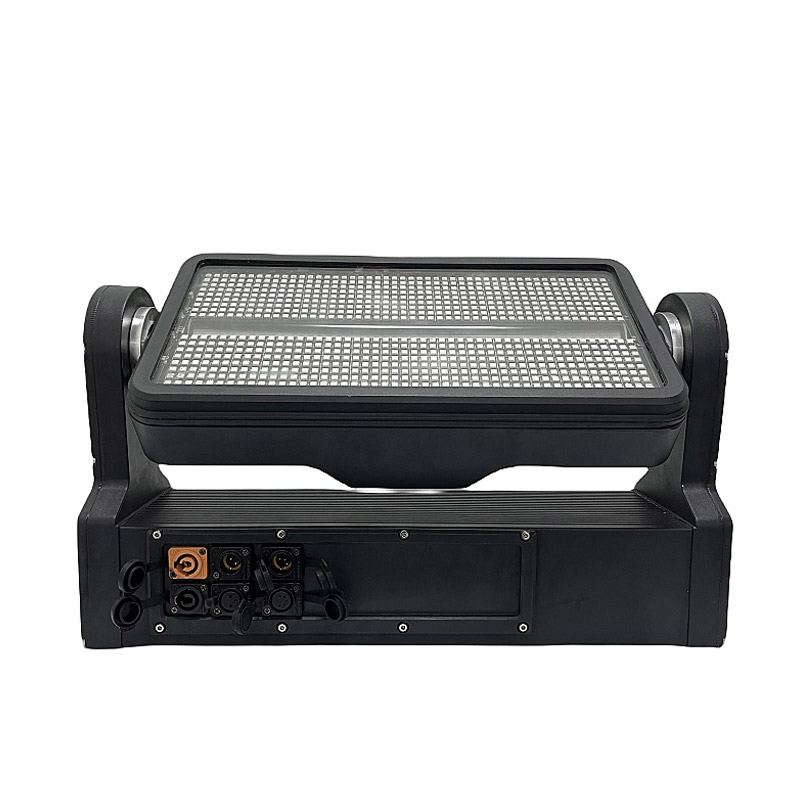

For connectivity, the moving strobe MS1000IP provides both 5-pin and 3-pin DMX In/Out ports, along with locking power In/Out connectors, allowing safe and efficient daisy-chaining between multiple units.

Model: MS1000IP

Description

Description

Product Video – Moving Strobe MS1000IP

Technical Parameters – Moving Strobe MS1000IP

• Light sources (Panel): 864pcs 5050 0.5W RGB LED, 96 segments
• Light sources (Tube): 256pcs 3030 3W White LED, 32 segments
• Power: 1000W
• Voltage: AC100-240V, 50/60Hz
• Tilt: 185° (8/16-bit resolution)
• Control Mode: DMX512, master-slave, self-propelled, voice control, RDM
• DMX Channel: 9/23/135/151/343 CH
• Dimmer: 0-100% electronic
• Internal Effects: LED macro effects
• Strobe: 1 ~ 30Hz
• Working temperature: -30 ℃ ~ 60 ℃
• Cooling: Temperature-controlled, overheating protection
• Display: illuminated graphic LCD
• Protection Rating: IP65

• Power In/Out: PowerCON
• DMX Data In/Out: XLR 3-pin and 5-pin

• Dimensions: 540 x 390 x 240 mm
• Net Weight: 15.4 kg
• Flight Case Package (4in1): 900 x 590 x 610 mm, Weight: 84.55 kg
