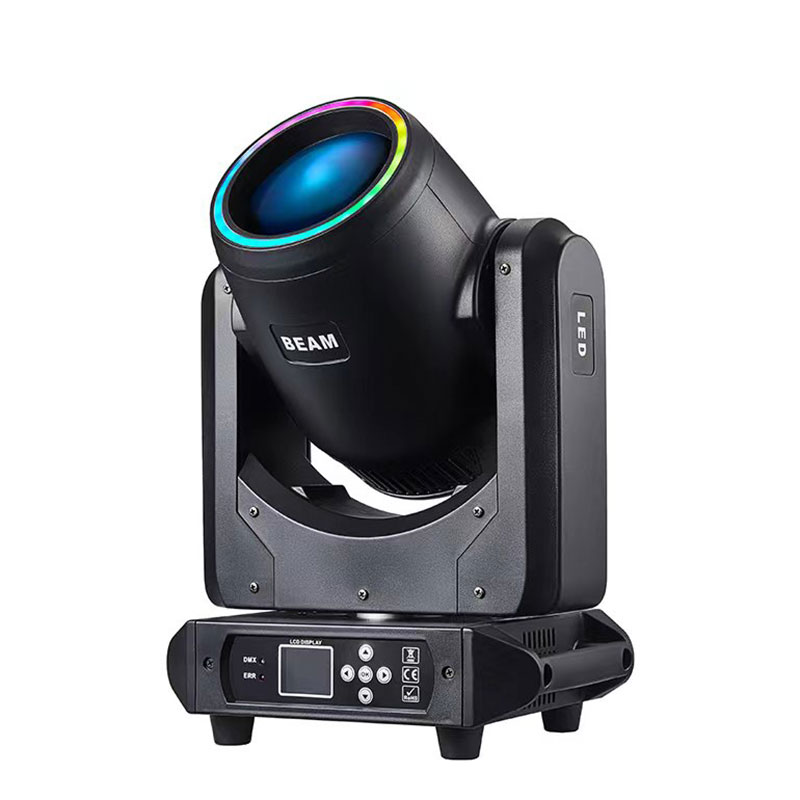

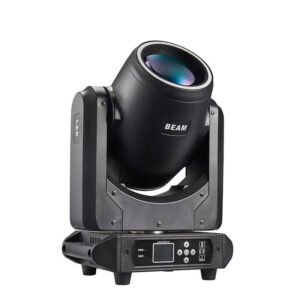

Mini Beam 150W LED Moving Head

The Mini Beam 150W LED moving head is a professional-grade fixture featuring a powerful 150W white LED engine. Designed for precision and impact, it delivers a sharp, clean 2.8° beam angle—perfect for creating intense aerial effects in live shows, clubs, and small to mid-sized stage productions.

To enhance its versatility, the Mini Beam 150W LED moving head comes equipped with a frost filter that transforms the narrow beam into a soft, wide wash—ideal for atmospheric lighting. It also features a dynamic LED ring, a 6+12 facet circular rotating prism, gobo wheel, and color wheel, making it a multifunctional gobo moving head suitable for both beam and effect lighting.

Commonly known as a Mini Beam 150W DJ light, this compact moving head fixture weighs only 9.5 kg, making it easy to handle and install. It supports PowerCON connections, ensuring a secure and professional power link for demanding applications.

Description

Product Video – Mini Beam 150W LED



Technical Specifications

• Light Sources: 150W white LED engine
• LED Ring: 31pcs 0.5W RGB 3in1 LED
• Color Wheel: 13 colors + white
• Gobo Wheel: 14 gobos + open
• Independent atomizer disk + colorful disk
• Prism: 6+12-facet combined circular rotating prism
• Lens optical system, electric focus, beam angle 2.8°
• Control Mode: DMX512/Master-slave/Automatic/Sound/RDM
• DMX Channel: 21 Channel
• Pan/Tilt: 540°/270°
• Display: can be displayed upright/inverted, and switch between Chinese and English
• Overheat protection
• Protection Rating: IP20

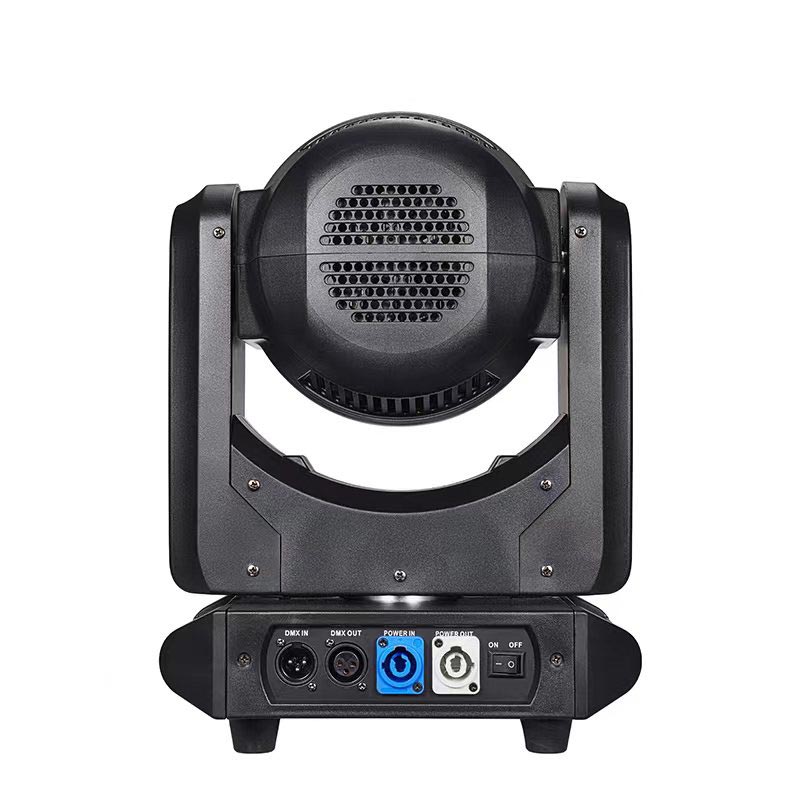

• Data Socket: 3-pin XLR in/out
• Power Socket: PowerCon in/out
• Weight: 9.5 kg
