Description
Technical Parameters
• Light sources: 1000W white COB LED engine, 9000K CT
• LED lifespan: 25,000 hours. One-touch on/off control. To protect the LED chip, allow at least 10 seconds before restarting after a power cut.
• Color temperature: 4500K/3200K
• Power voltage: AC100-240V, 50-60Hz
• Control mode: DMX512/manual operation
• DMX channel: 8 CH

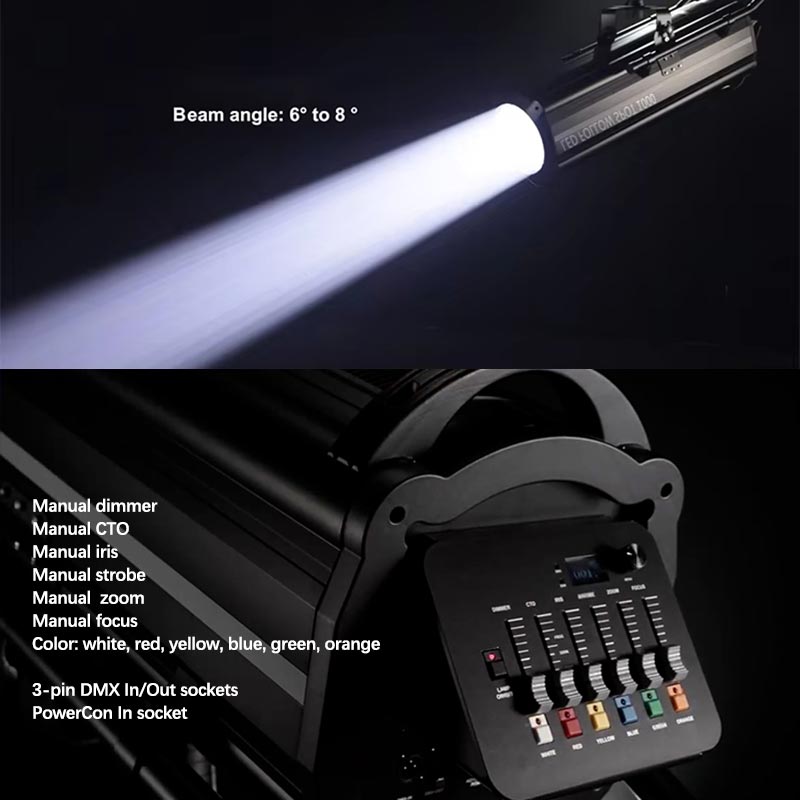

• Beam angle: 6-8 °
• CRI＞90
• Manual iris: The beam aperture can be adjusted manually using the lever
• Dimming: 0-100% linear dimming
• Strobe: 1-11Hz
• Projection range: 10-60 meters/10-120 meters
• Data socket: 3-pin XLR in/out
• Power socket: PowerCon in
• Follow spot housing: Durable aluminum alloy
• Tripod stand: The follow spot comes with a high-capacity manual lift stand featuring a hand-crank mechanism, combining easy setup, smooth height adjustment, and a professional appearance.
• Cooling System: Utilizes twelve 8mm-thick copper heat pipes for rapid heat conduction, combined with large-area aluminum fins for efficient heat dissipation. This ensures the LED chip operates within safe temperature limits, maintains light decay control, and extends the LED lifespan. An overheat protection mechanism is triggered when temperatures exceed safe thresholds.
• Protection rating: IP20
Dimensions & Weight
• Light body dimensions: 1205 × 375.5 × 422.7 mm
• Light body net weight: 37.8 kg
• Tripod stand dimensions: 1200 × 240 × 200 mm
• Tripod stand weight: 10.4 kg
• Flight case dimensions: 1340 × 630 × 640 mm
• Flight case net weight: 42.35 kg
• Total shipping weight (with flight case): 90.55 kg
Product Video – 1000W LED Follow Spot with DMX
